PW011 - Flame top seal

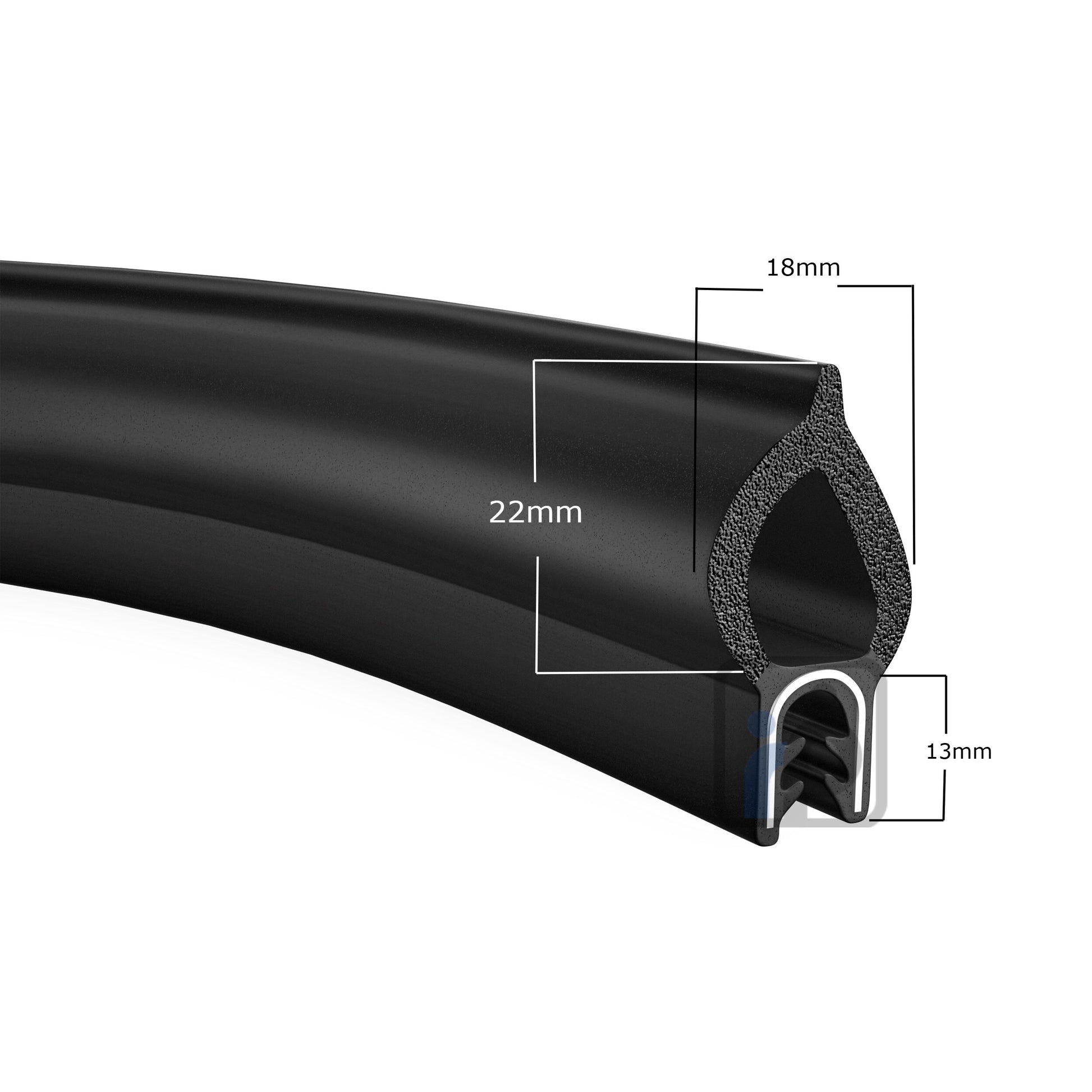

Our PVC Pinchweld with Soft Flame Top Seal combines flexible edge protection with a 22mm compressible flame-shaped top seal. The pinchweld section grips securely onto panel edges, while the soft top seal compresses against the mating surface to help provide a practical seal and cushion.

This pinchweld rubber seal is suitable for automotive, vehicle, machinery and general fabrication applications where both edge protection and a compressible top seal are required.

Key Features

22mm Soft Flame Top Seal: Features a flexible 22mm flame-shaped seal positioned directly on top of the pinchweld. The soft profile compresses when closed against a mating surface.

1-2.5mm Grip Range: Designed to grip panel and sheet edges approximately 1mm to 2.5mm thick.

Flexible PVC Construction: Flexible PVC allows the pinchweld edge trim to follow curves, corners and irregular panel edges.

Protects Sharp Edges: Covers exposed sheet metal and panel edges to provide a cleaner finish and protection from sharp edges.

Compressible Seal: The soft flame profile provides cushioning and can help reduce gaps, vibration, dust and draughts depending on the application.

UV Stabilised: Suitable for automotive and general applications where exposure to sunlight may occur.

Automotive Use: Ideal for vehicle doors, boots, bonnets, access panels, canopies, caravans, trailers and other automotive sealing applications.

Temperature Range: Suitable for temperatures from approximately -25°C to +70°C.

Common Applications

• Automotive door and panel seals
• Canopies and toolboxes
• Caravans and trailers
• Boots and bonnets
• Access panels and hatches
• Machinery enclosures
• Sheet metal edge protection
• General automotive and industrial sealing

Product Specifications

• Product: PVC Pinchweld with Flame Top Seal
• Material: Flexible PVC
• Grip Range: 1-2.5mm
• Top Seal: Soft compressible flame profile
• Flame Size: 22mm
• Temperature Range: -25°C to +70°C
• Maximum Continuous Length: 50 metres
• Sold: Per metre

Ordering: This product is sold by the metre. Enter the number of metres required as the quantity. For example, quantity 10 = 10 continuous metres, up to a maximum continuous length of 50 metres.
