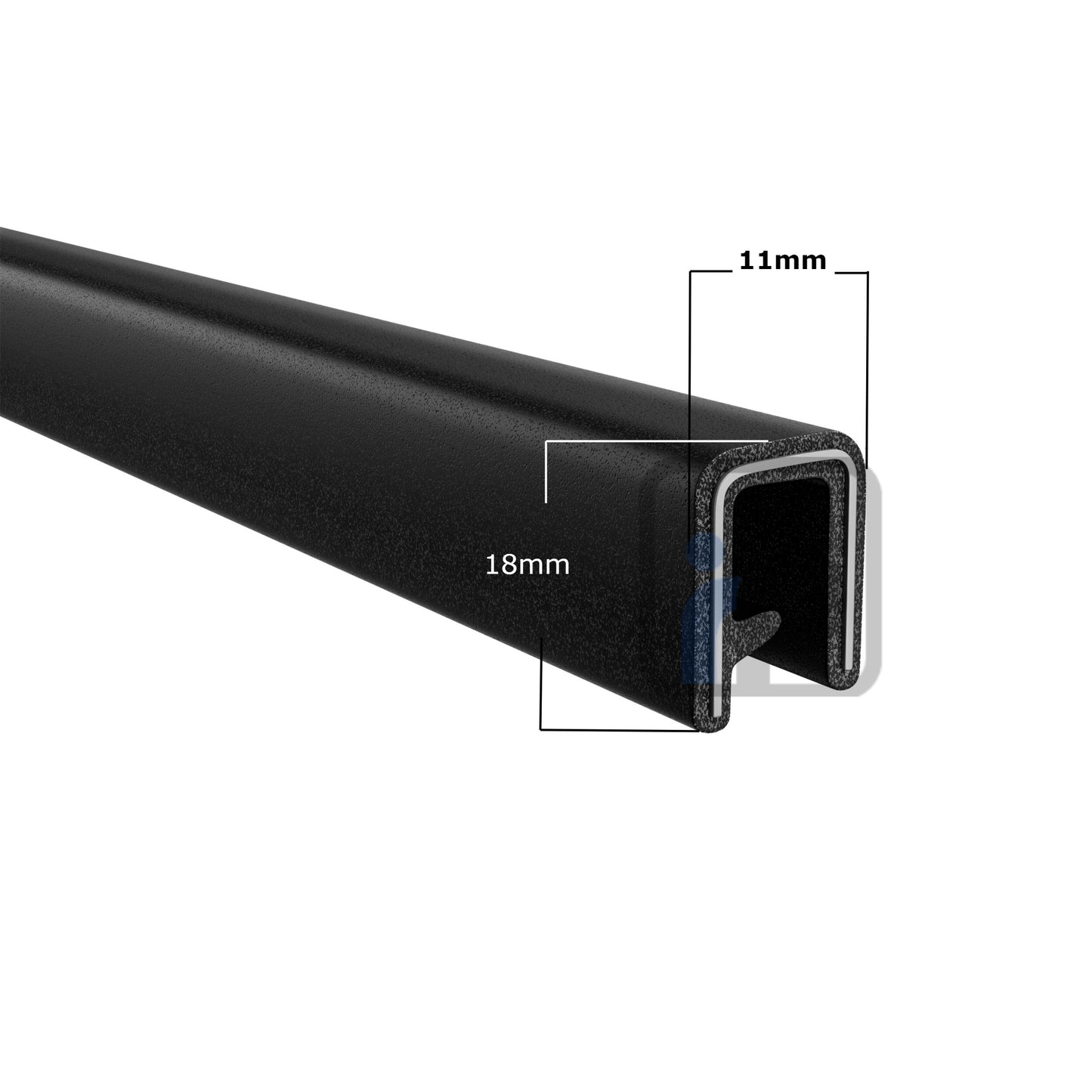

PW083 PVC Pinchweld Black

Our Black PVC Pinchweld Edge Trim is a flexible protective edging designed to fit over exposed metal, sheet metal and panel edges. This straight pinchweld profile has no rubber bulb or bubble, making it ideal where a simple, neat edge protector is required.

Suitable for automotive, industrial and general-purpose applications, the pinchweld grips securely over edges between 4mm and 6mm thick and provides a clean finished appearance while helping protect against sharp or unfinished edges.

Key Features

4-6mm Grip Range: Designed to fit securely over panel and material edges approximately 4mm to 6mm thick.

Straight Edge Profile: Protective pinchweld edging without a sealing bulb or bubble – ideal when edge protection rather than compression sealing is required.

Flexible PVC: Flexible construction allows the pinchweld to follow curves, corners and irregular edges.

UV Stabilised: Suitable for applications where exposure to sunlight and outdoor conditions may occur.

Automotive Use: Ideal for vehicle bodywork, panels, doors, guards and other automotive edge protection applications.

Temperature Range: Suitable for temperatures from approximately -25°C to +70°C.

Continuous Lengths Available: Supplied by the metre and available in a continuous length up to 50 metres.

Common Applications

• Automotive edge trim
• Vehicle panels and bodywork
• Sheet metal edge protection
• Machinery and equipment
• Metal cabinets and enclosures
• Trailer and caravan applications
• Guards and access panels
• General protective edging

Product Specifications

• Product: PVC Pinchweld / Protective Edge Trim
• Colour: Black
• Profile: Straight edge – no bulb/bubble
• Grip Range: 4-6mm
• Temperature Range: -25°C to +70°C
• Maximum Continuous Length: 50 metres
• Sold: Per metre

Ordering: Enter the number of metres required as the quantity. For example, a quantity of 10 = 10 continuous metres (subject to the maximum continuous length of 50 metres).
