Our PVC Pinchweld with Soft Flame Top Seal is a flexible edge trim and sealing profile designed for thicker panel edges. With a 2.0mm to 4.5mm grip range, this is our largest-grip top seal pinchweld, making it ideal for applications where smaller pinchweld profiles will not fit.
The profile features a soft, compressible flame-shaped top seal positioned directly above the pinchweld. When compressed against a mating surface, the seal provides cushioning and helps close gaps while the pinchweld securely covers and protects the panel edge.
Key Features
Large Grip Range: Designed for thicker panel and sheet edges, with the largest grip range in our top seal pinchweld range.
Soft Compressible Top Seal: The flexible flame-shaped seal compresses against the mating surface to provide cushioning and help close gaps.
Edge Protection & Sealing: Combines protective PVC pinchweld edging with a flexible top seal in one convenient profile.
Flexible PVC: Follows curves, corners and shaped panel edges for easy installation across a variety of applications.
Protection from Sharp Edges: Covers exposed sheet metal and panel edges, providing a neat finish while helping protect against sharp edges.
UV Stabilised: Suitable for automotive and general applications where exposure to sunlight may occur.
Automotive & General Use: Suitable for vehicles, canopies, trailers, caravans, machinery and fabricated enclosures.
Common Applications
- Automotive doors and panels
- Vehicle canopies and toolboxes
- Caravans and trailers
- Access panels and hatches
- Machinery enclosures
- Sheet metal edges
- Industrial panel sealing
- General edge protection and sealing
Product Specifications
- Material: Flexible PVC
- Grip Range: 2.0-4.5mm
- Top Seal Profile: Soft compressible flame

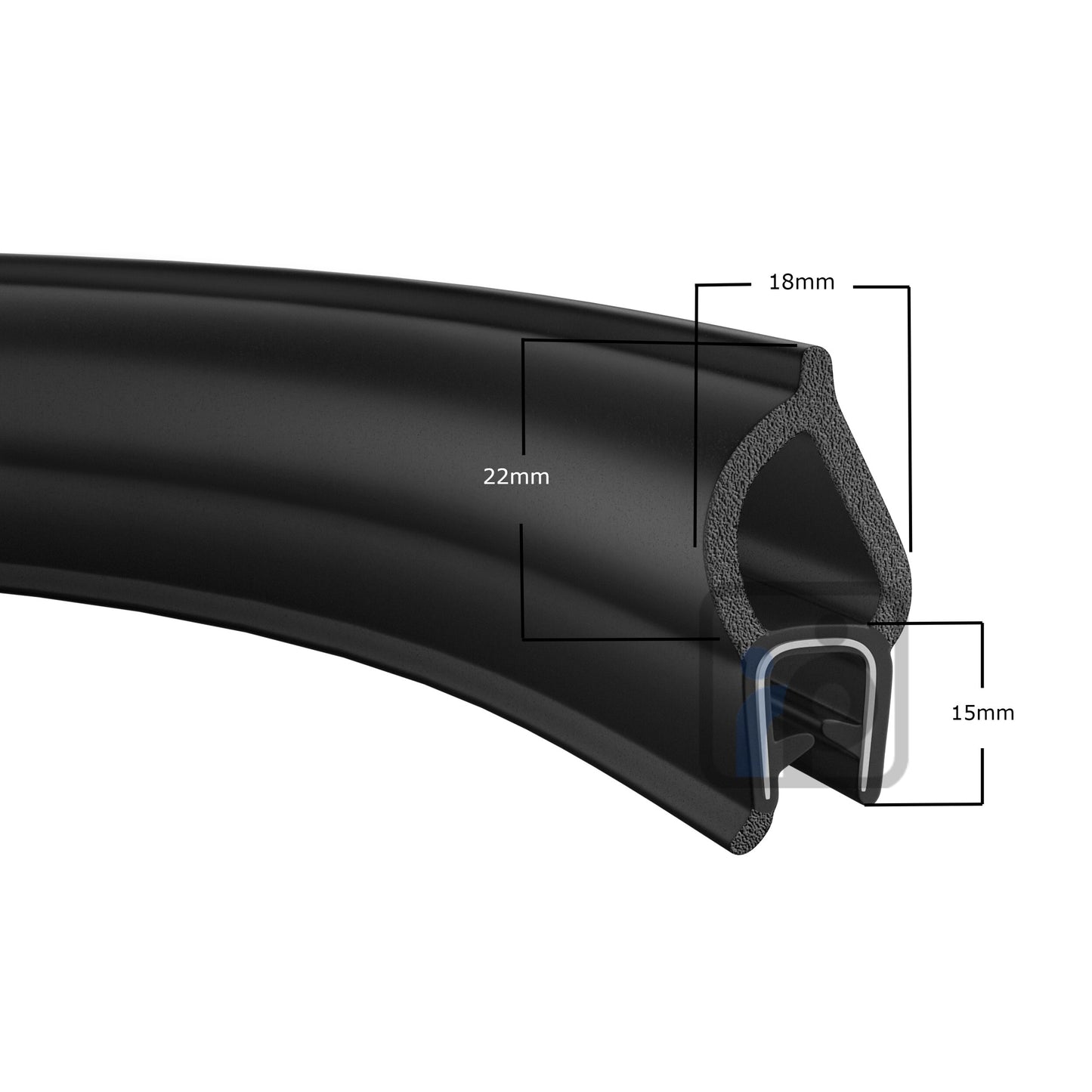

- Top Seal Size: 22mm high x 18mm wide
- Temperature Range: -25°C to +70°C
- UV Stabilised: Yes
- Maximum Continuous Length: 50 metres
- Sold: Per metre
Ordering
This PVC pinchweld seal is sold by the metre. Enter the total number of metres required as the quantity.
For example, quantity 10 = 10 continuous metres. Lengths can be supplied continuously up to a maximum of 50 metres.
